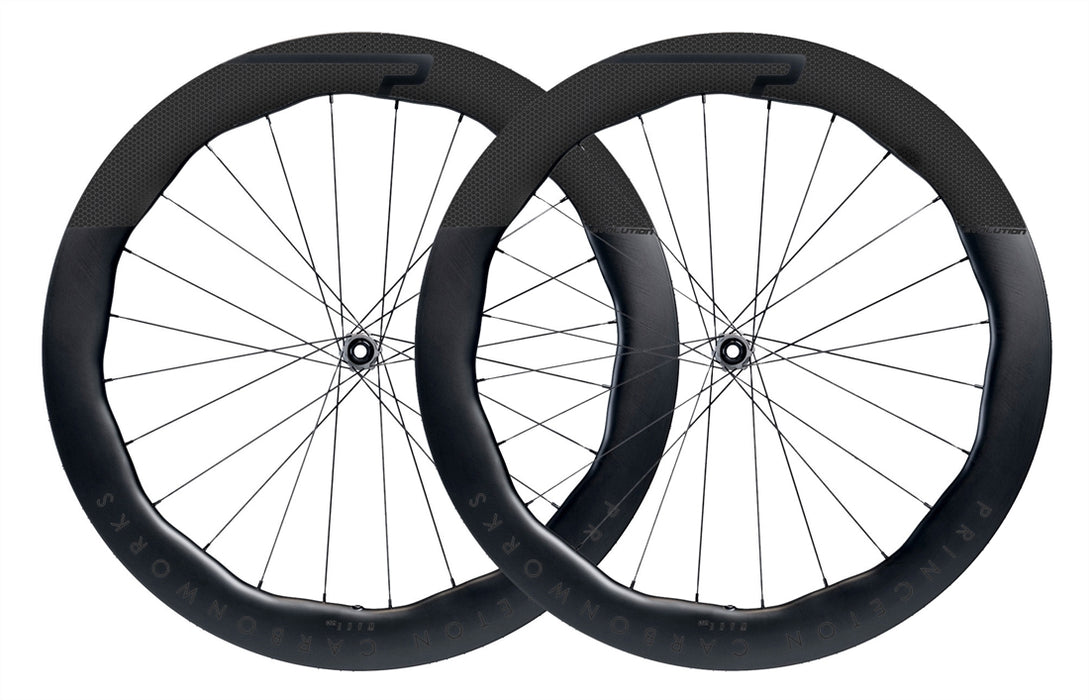

Princeton Carbonworks Wake 6560 Evolution Disc Brake Industry Nine Black Wheelset

Original price $3,150.00 - Original price $3,150.00
Original price
$3,150.00
$3,150.00 - $3,150.00
Current price $3,150.00
Brake Type: Centerlock Disc
Freehub Body: SRAM XDR

Please see photos for detailed specifications.

For additional information, photos or wheel and component upgrades available, please email [email protected] or call us at 972-730-3288

Shipping and Financing Available

Why Buy a Bike from Playtri

*Specifications subject to change without notice from manufacturers

The Princeton CarbonWorks Wake 6560 was conceived in 2012, with initial riding models completed in 2015.

Since then, there have been 4 iterations of our flagship wheel, each offering improvements in aerodynamic performance and efficiency, weight, stiffness, responsiveness, and quality.

A unique and balanced combination of attributes has made the Wake 6560 the go-to wheel for those looking for peak performance: aerodynamically faster than deeper wheels, lighter and better-handling than shallower wheels, all while stiff, responsive, and lively under power. And now, in its fifth generation, the legend evolves.

The Wake 6560 Evolution ushers in a revolutionary new shape, the second wheelset in our Evolution series behind the Alta 3532. Extensive testing and development have resulted in a wheelset that is even more efficient than its predecessor, the Wake 6560 Strada. More impressively, the new Wake 6560 Evolution has been the largest step change in performance from one version to the next, amongst all iterations of the Wake series.

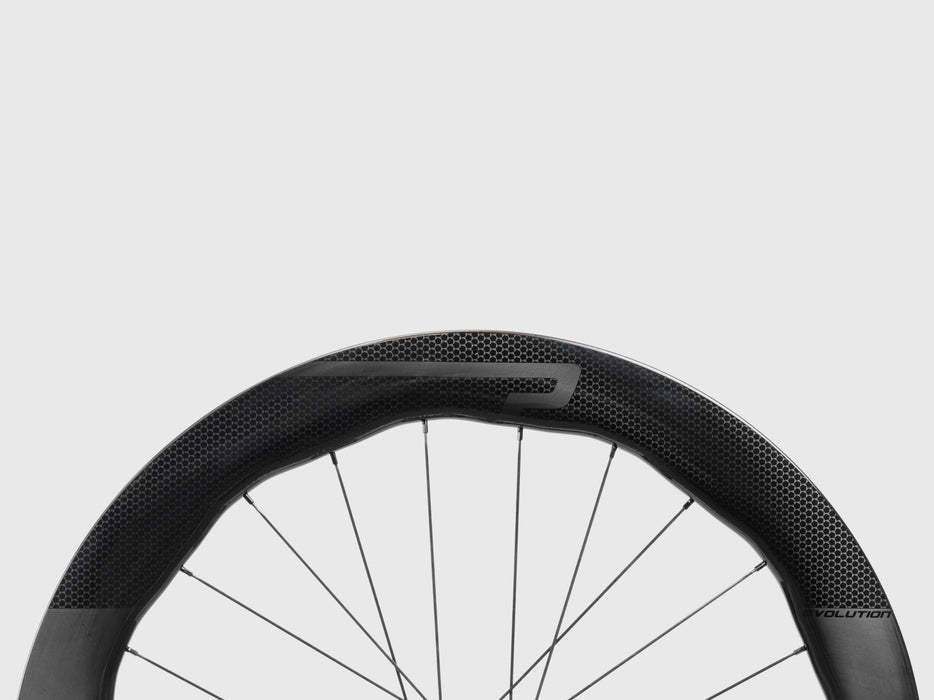

Instantly recognizable versus previous versions, the shape of the Wake 6560 has substantially changed. Our new Evolution profile matches alternating deep and shallow rim sections with alternating spoke sides. Mechanically, this allows the steeper, high tension spokes (drive side rear spokes and disc side front spokes) to connect to a deeper rim section, thereby flattening those spoke angles. The change in bracing angle helps balance spoke tensions, creating a stiffer, more uniform wheel. This patented technology, Radially Staggered Lacing, is exclusive to Princeton CarbonWorks road wheels.

Wake 6560 Evolution is also incrementally wider and lighter than its predecessor. The increased width (21mm internal, 28.2mm max external) is optimized for the 25-28mm tires that professional cyclists currently race on. The result is a wheel with even better aerodynamic efficiency at all yaw angles and better composure in tricky crosswinds. Rim weight has been reduced by 10g per rim, helped by the overall shorter cord length of the inner edge.  Ride how you want, with what you want.  The Wake 6560 Evolution will continue to have a hooked, hole-less, tubeless ready tire bed, which can accommodate clincher/tubed tires or tubeless tires with no tape needed and no tire pressure restrictions.

Max Rim Width

28.2 mm

Max Rim Depth

65mm

Min Rim Depth

60mm

Spokes

Sapim® CX-Ray®

Nipples

Sapim® Secure Lock

Spoke Count

24/24

Hub Type

White Industries

Free Hub Body

Shimano, SRAM XDR

Finish/Color

Matte/Black

Internal Width

21 mm

Tire Compatibility

Clincher/Tubeless Ready
