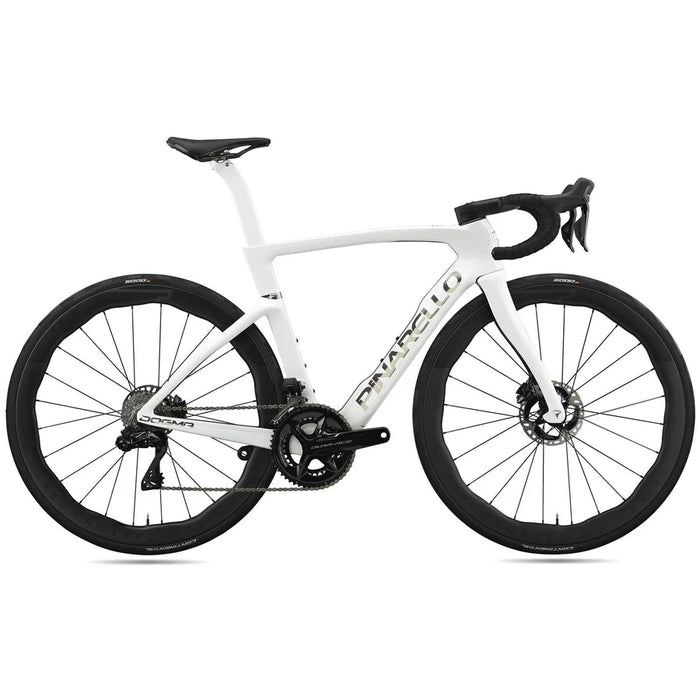

Pinarello Dogma F Disc Dura Ace Di2 - Crystal White 2024

Pinarello Dogma F Disc Dura Ace Di2 - Crystal White 2024

by Pinarello
Save 10% Save 10%
$15,500.00
$15,500.00 - $15,500.00
$15,500.00
$13,999.99
$13,999.99 - $13,999.99
$13,999.99
Size: 50CM

Please see photos for detailed specifications.

For additional information, photos or wheel and component upgrades available, please email [email protected] or call us at 972-730-3288

Shipping and Financing Available

Why Buy a Bike from Playtri

*Specifications subject to change without notice from manufacturers

THE ART OF BALANCE

Seven of the last 11 Tours de France have been conquered on a DOGMA, and the latest generation is now ready to continue that legacy of success. This is the culmination of all of our skill and experience, a masterpiece of engineering that offers advancements in handling, comfort, and aerodynamics all wrapped in a package that can climb, descend, and sprint with equal flair. Whatever the road throws at you, the DOGMA F is always the right bike.

INNOVATION:
CARBON T1100 1K
ASYMMETRIC FRAME
ONDA FORK
FORK FLAP
ITALIAN BB
TiCR
FLATBACK PROFILE
RACE GEOMETRY

CARBON: T1100 1K High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.

TiCR: The state-of-the-art internal cable routing across the whole bike industry. The system allows both to install wireless or electro-mechanical group sets and completely hides cables within bar/stem or integrated handlebar for improved aero performances and cable protection.

FLATBACK PROFILE: Truncated aerofoil for aerodynamic advantage, compliant to 3:1 UCI rule. Excellent aero performance and low lateral wind resistance.

Specs:
FRAME: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved
FORK: F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings
SEATPOST: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
SEAT CLAMP: Seatclamp Twinforce, titanium bolts
CRANKSET AND CHAINRINGS: Shimano Dura Ace FC-R9200, HollowTech 2, 12s
FRONT DERAILLEUR: Shimano Dura Ace Di2 FD-9200 11S
REAR DERAILLEUR: Shimano Dura Ace Di2 RD-R9200 12s
CASSETTE: Shimano Dura Ace CS-R9200 12S
CHAIN: Shimano Dura Ace CN-HG 12S
BOTTOM BRACKET: Shimano Dura Ace SM-BB9200
FRONT BRAKE: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
REAR BRAKE: Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
INTEGRATED HANDLEBAR: MOST Talon Ultra Light
BAR TAPE: Most bar tape
SADDLE: Most Lynx Ultrafast Superflow L Carbon Large 145mm
WHEELS AND TIRES
TIRES: Pirelli P Zero Race 26mm - Black, 127 tpi aramid breaker. Max tire size 28mm (width as measured)
WHEELSET: Shimano Dura Ace C50
AXLES: Ultra Light Custom Axle 12x100 & 12x142, tool free removal
BOTTLES AND BOTTLE CAGES: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black



GEOMETRIES

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.4 502.4
450 465 515 74.4 70.5 406 104 72 43 373 364.8 517.6
465 500 525 74 71.4 406 109 72 43 373 372.1 525.4
485 515 535 73.7 72 406 114 72 43 373 378 532.3
500 530 545 73.7 72.5 406 123 72 43 373 383.3 542.6
510 540 550 73.4 72.8 408 131 72 43 373 385 551.2
520 550 557 73.4 72.8 408 142 72 43 373 388.8 561.6
525 560 565 73 73.2 408 149.5 72 43 373 390.7 570.2
540 575 575 73 73.7 408 163 72 43 373 396.7 584.8
560 595 587 72.4 73.4 408 199 67 43 373 393.3 613.3
600 620 620 72 73.4 411 239 67 43 373 410.1 651.7
DOGMA F DURA ACE Di2 Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
