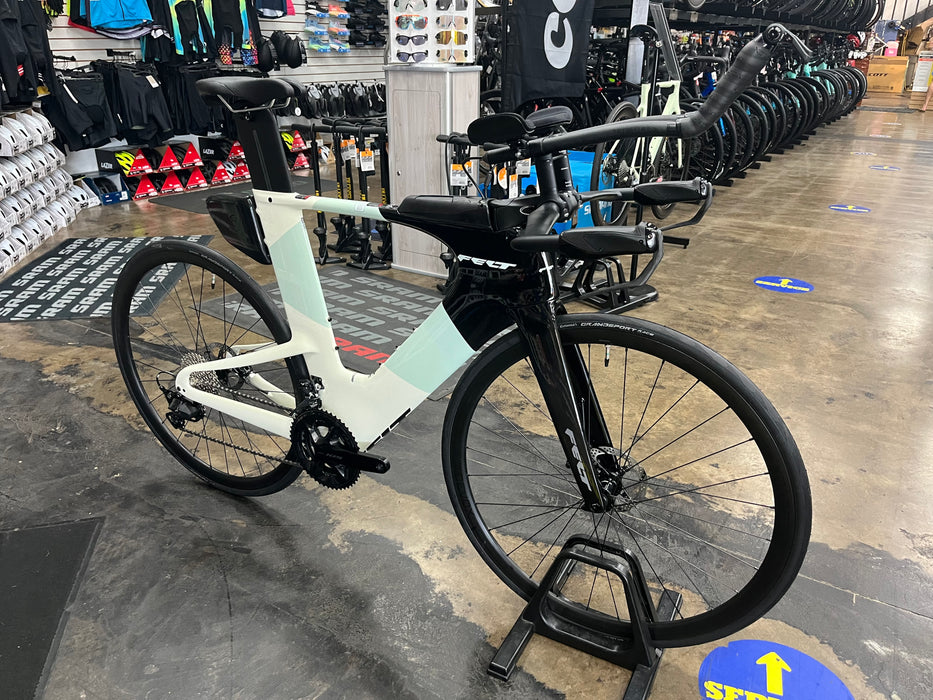

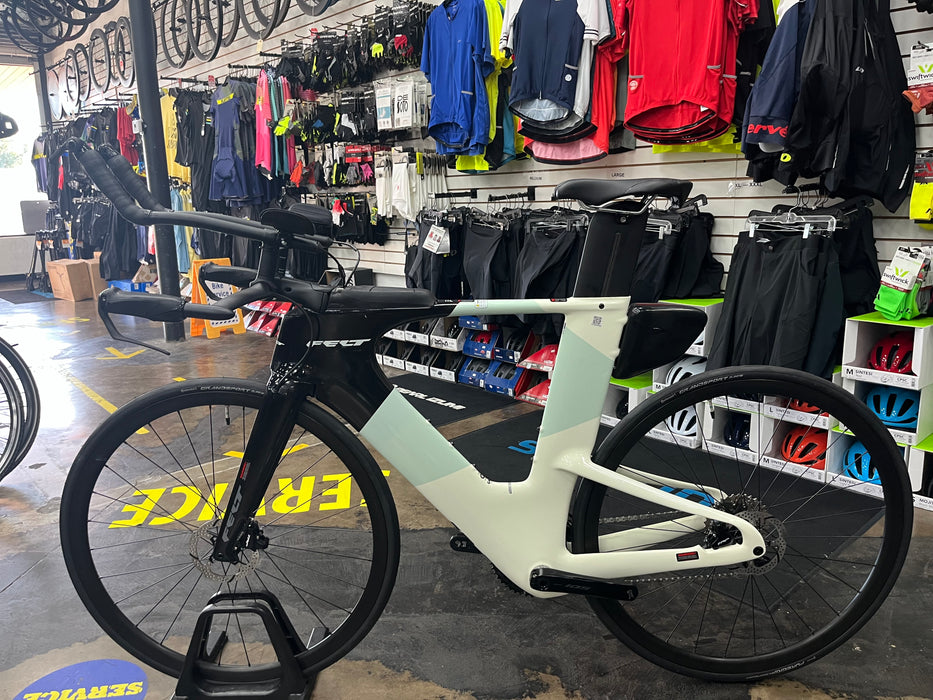

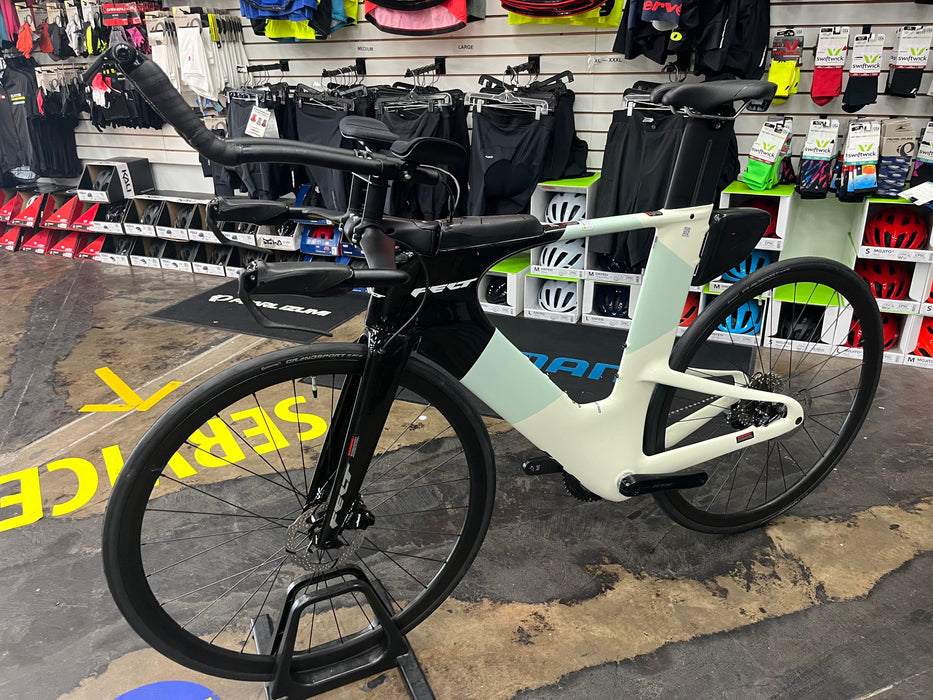

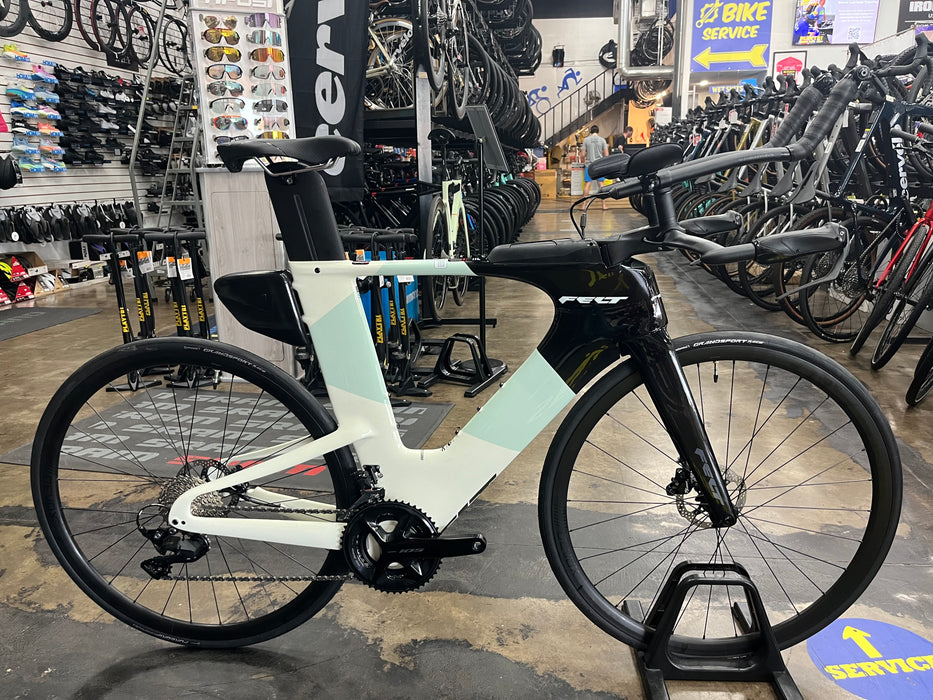

Felt IAX Advanced Shimano 105 12-Speed - Sage White 2025

Felt IAX Advanced Shimano 105 12-Speed - Sage White 2025

by Felt
$3,699.00 - $3,699.00
$3,699.00
$3,699.00 - $3,699.00
$3,699.00
Size: 48CM

Please see photos for detailed specifications.

For additional information, photos or wheel and component upgrades available, please email [email protected] or call us at 972-730-3288

Shipping and Financing Available

Why Buy a Bike from Playtri

*Specifications subject to change without notice from manufacturers

This is the perfect race-ready rig for those who crave the simplicity of mechanical shifting in the quest for speed. Reliable. Performance-oriented. Fast.

The IAx is the updated version of our famous IA. By eliminating the frame/fork nose cone and complicated one-piece front end we provide more fit options across a wider range of athlete levels. Race-ready with the advantages of a streamlined and simplified design to make bike set-up easier and to keep things simple with overall maintenance and travel to events.

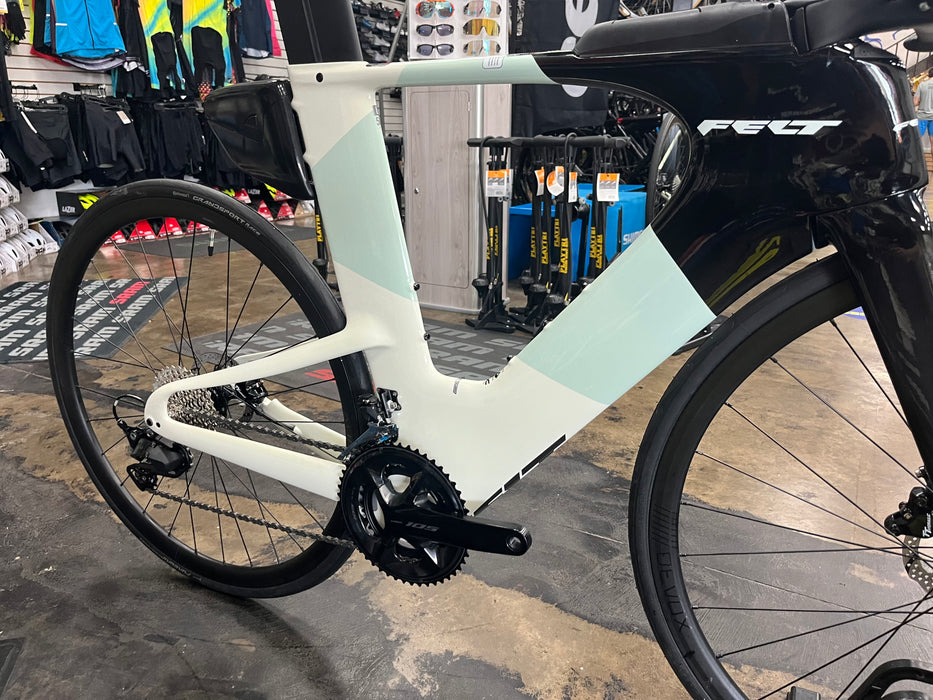

  • Frame: Felt IAx 1.0, UHC Advanced
  • Fork: Felt IAx 1.0, UHC Advanced

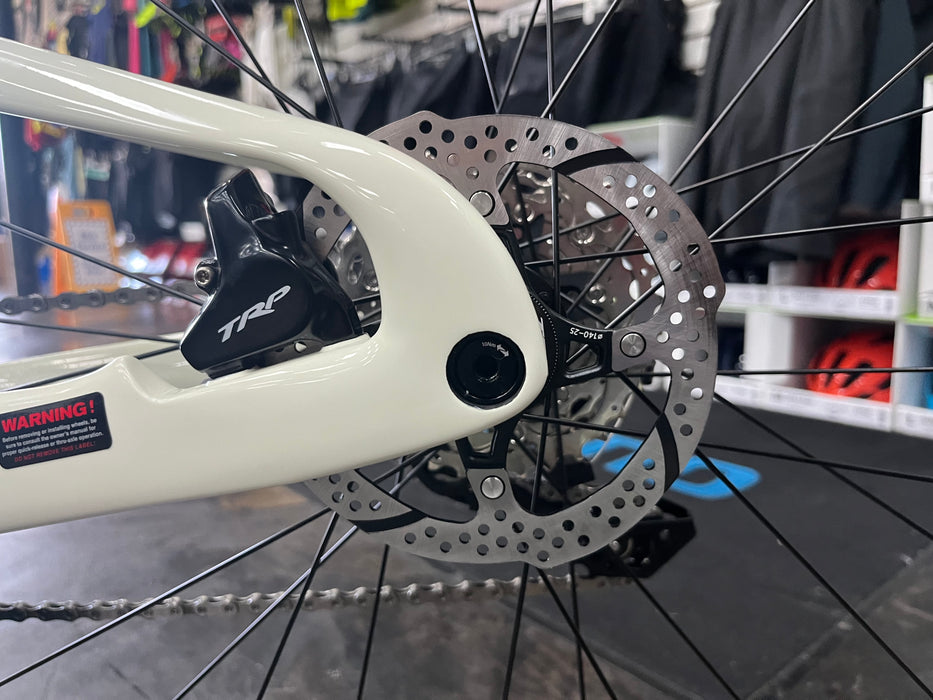

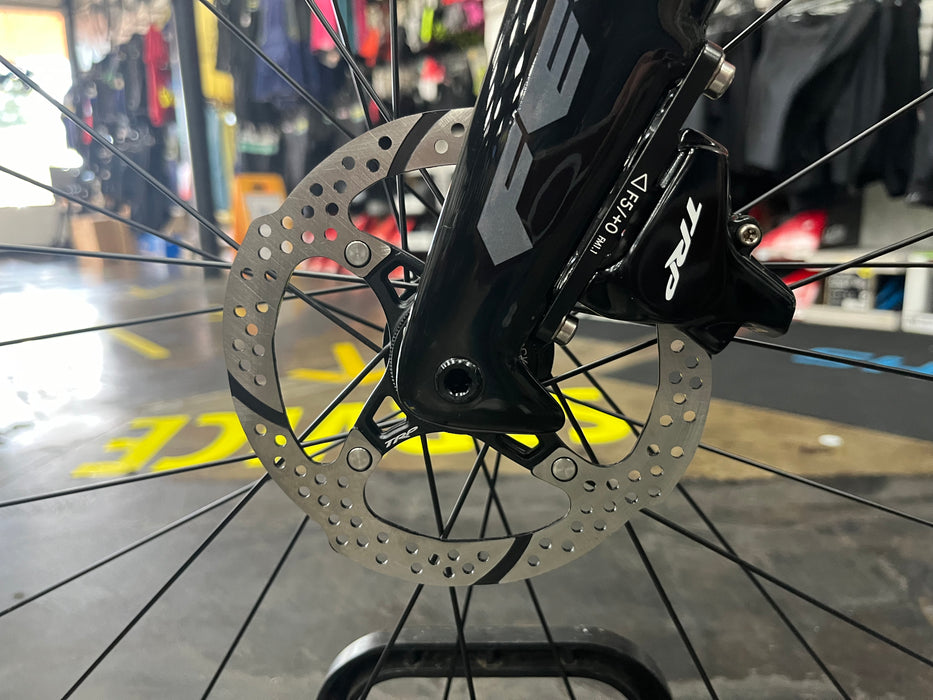

  • Brakes: TRP HD-T910, 2-piston, Hydraulic disc brake
  • Brake Rotors: TRP TR25, 140 mm, Center lock
  • Brake Levers: TRP HD-T910

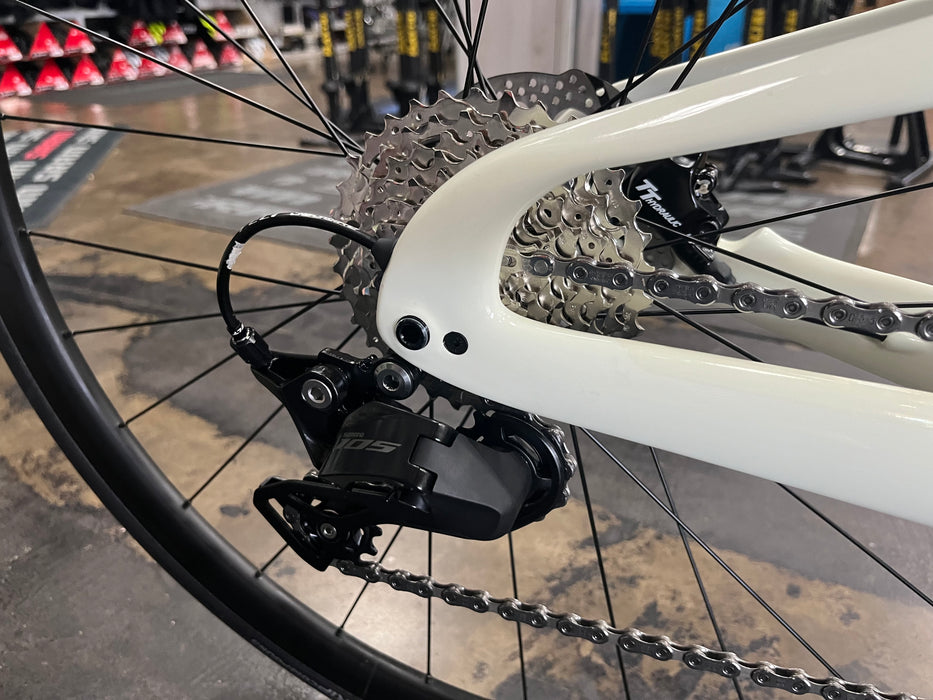

  • Rear Derailleur: Shimano 105, RD-R7100, short cage, 24-S
  • Front Derailleur: Shimano 105, FD-R7100, Brazed-On

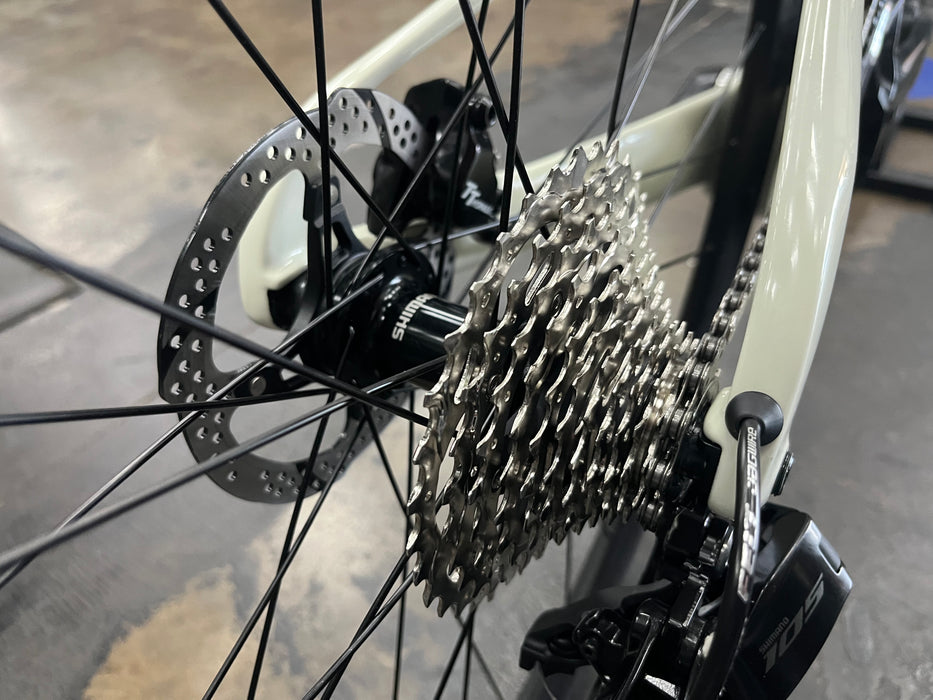

  • Cassette: Shimano 105 CS-R7100, 11-34 T
  • Chain: Shimano CN-M7100

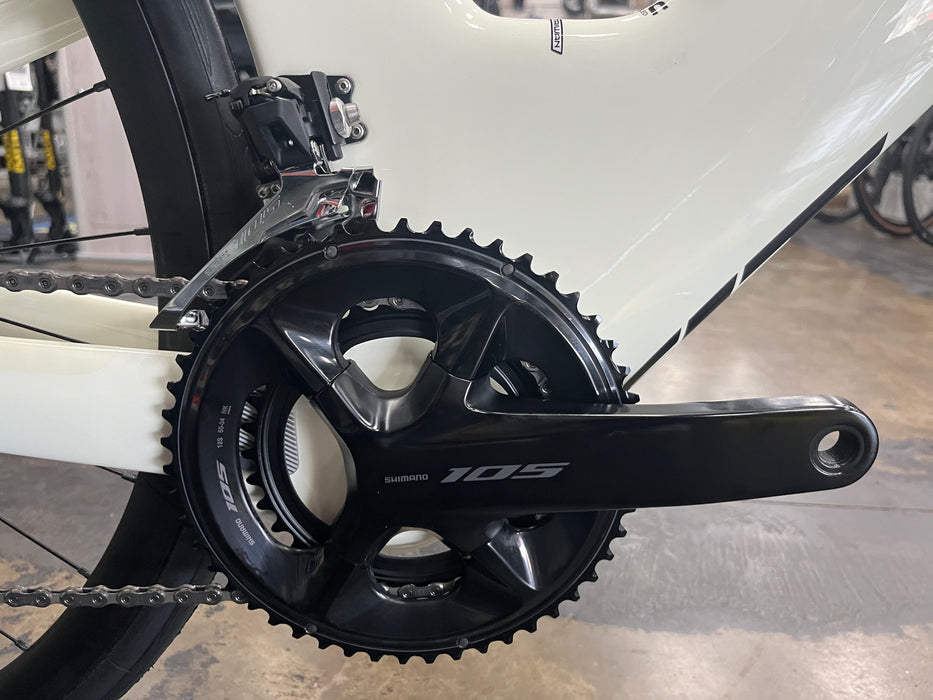

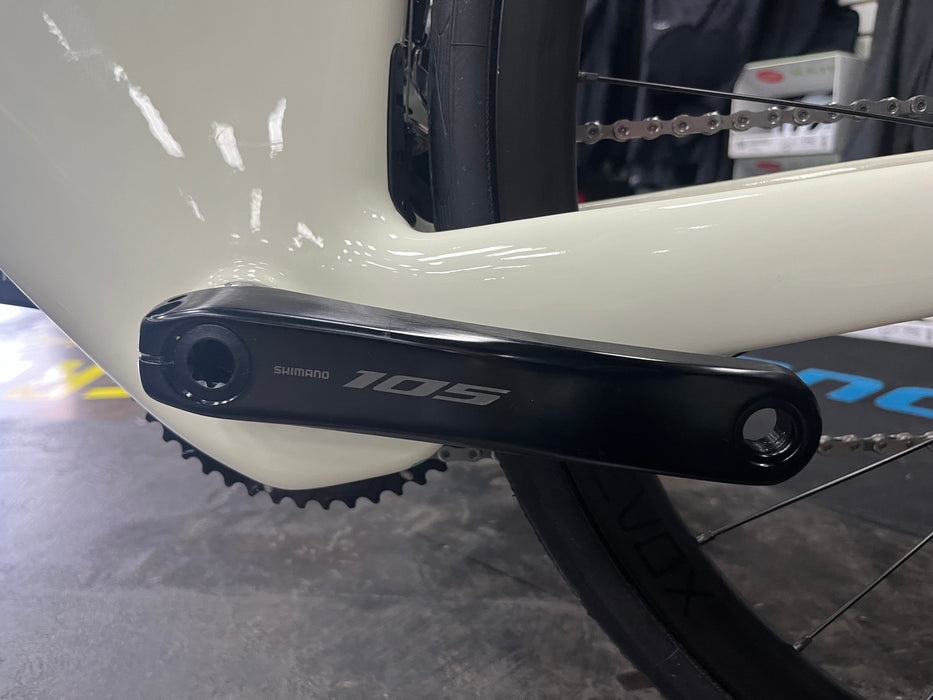

  • Crankset: Shimano 105, FC-R7100, 50/34 T
  • Shift Levers: Microshift BS-A11
  • Bottom Bracket: Shimano BB-RS500-PB,
  • Wheelset: Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm

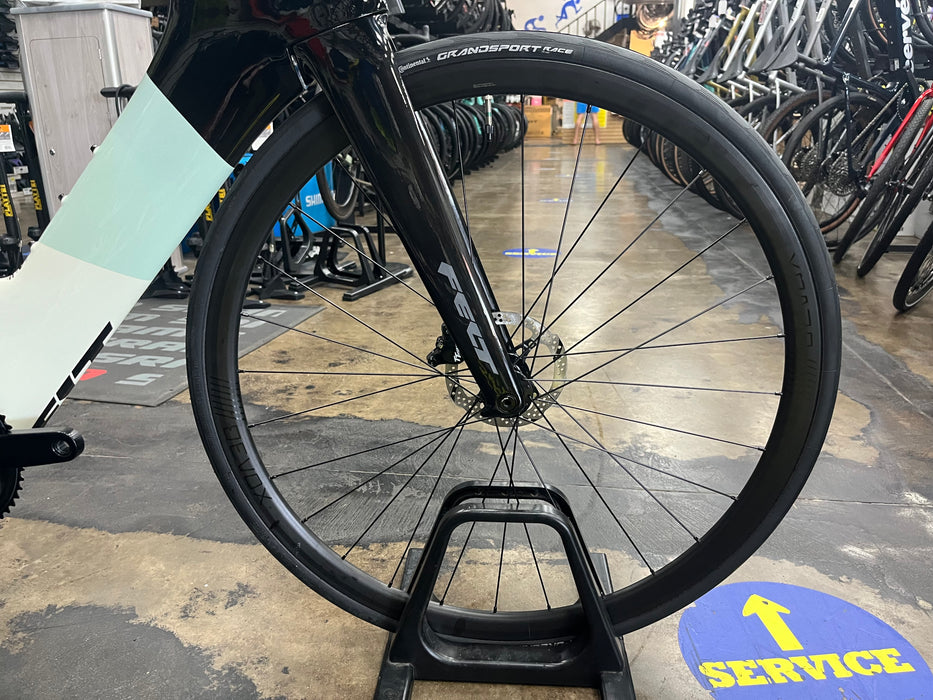

  • Front Wheel Rim: Alex Aluminum 23.8/19/30mm / Hub: Shimano HBRS470CL
  • Rear Wheel Rim: Alex Aluminum 23.8/19/30mm / Hub: Shimano FHRS470CL

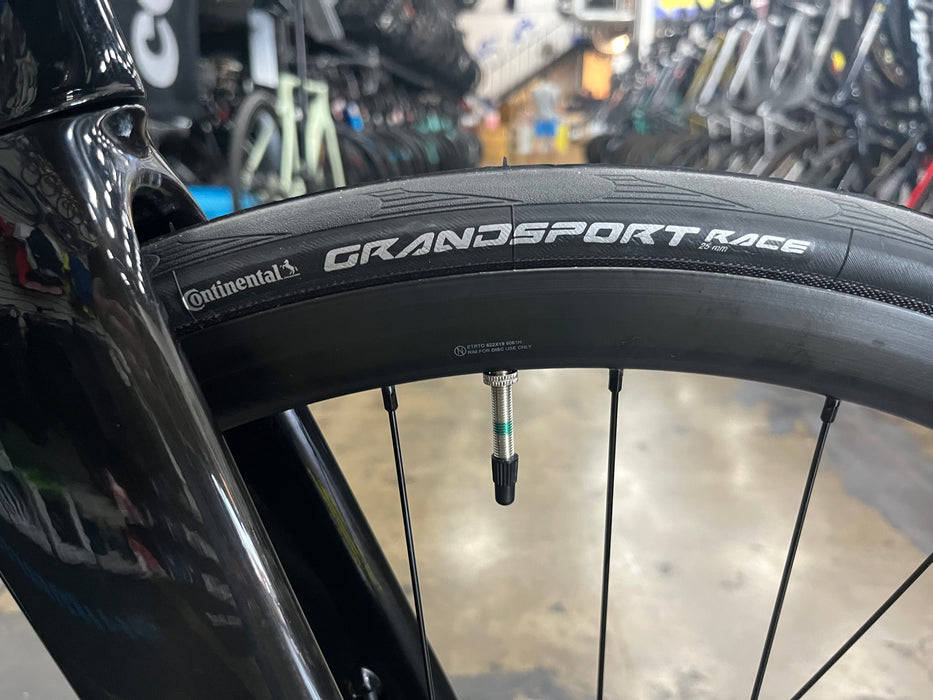

  • Tires: Continental Grand Prix SL, 700x25
  • Stem: Felt Dagger 31,8
  • Headset: IS (NO.42)

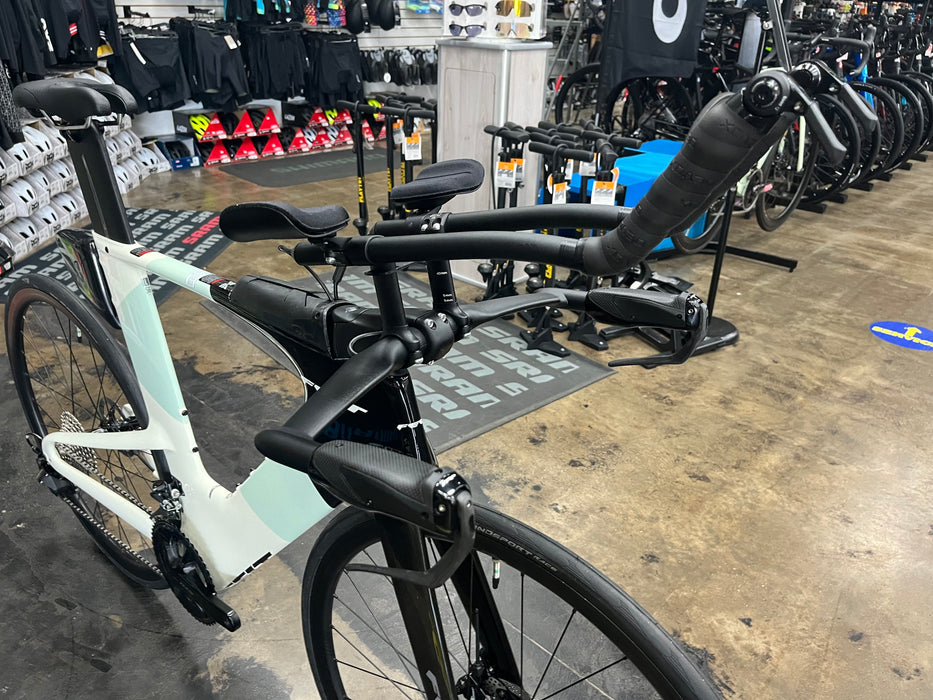

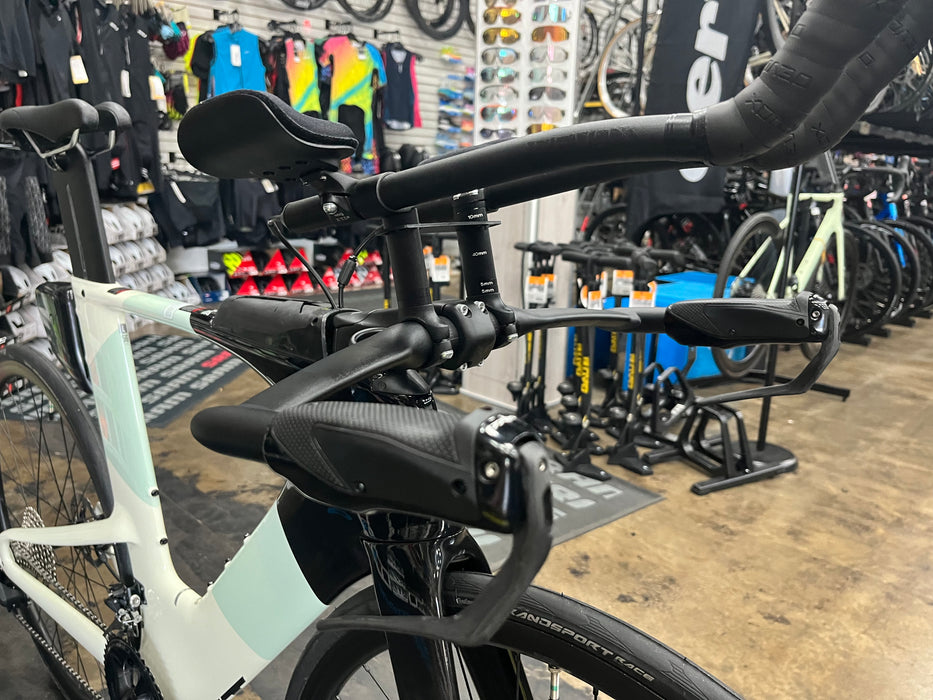

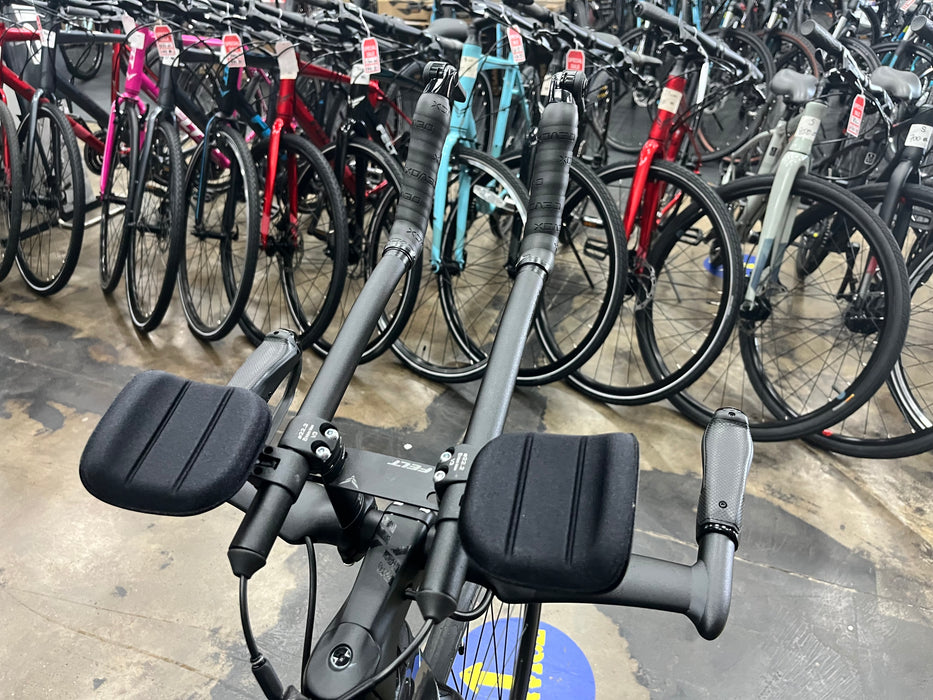

  • Handlebar/Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum

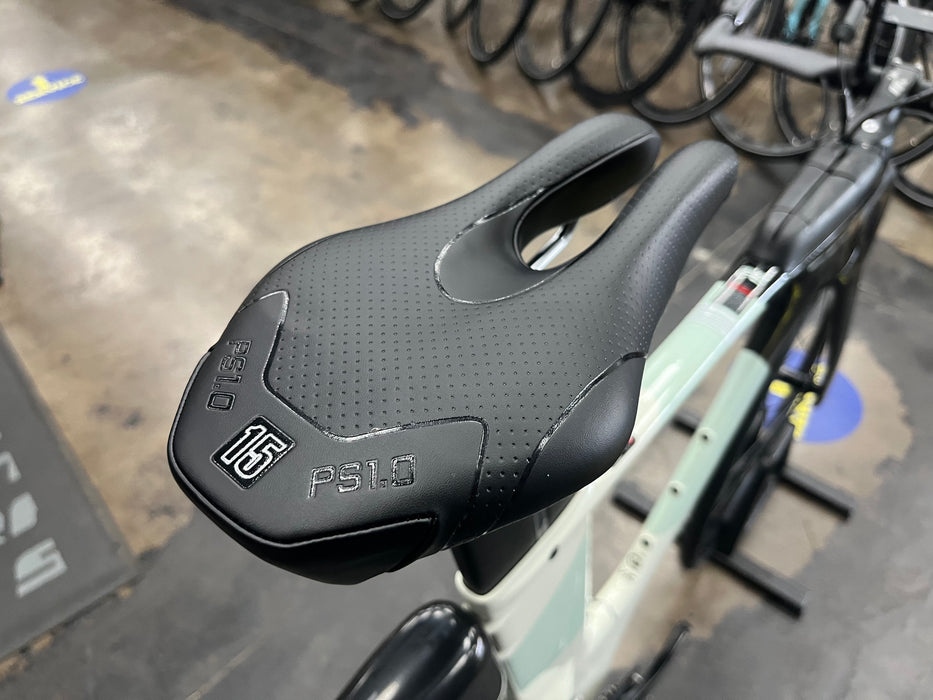

  • Saddle: ISM PS1.0, Satin Steel
  • Seatpost: Felt Aero TRI IL 1.0 VM
  • Permissible Total Weight: 284.39 lbs
  • Trailer Approval: No trailer approval



          47 48 51 54 56 58
          Rider Height
          152.4 - 167.6 cm
          152.4 - 167.6 cm
          167.6 - 172.7 cm
          172.7 - 180.3 cm
          180.3 - 187.9 cm
          187.9 - 195.5 cm
          5’0” - 5’5”
          5’0” - 5’5”
          5’5” - 5’8”
          5’8” - 5’11”
          5’11” - 6’2”
          6’2” - 6’5”
          Rider inseam
          70.8 - 74.4 cm
          70.8 - 74.4 cm
          74.4 - 77.9 cm
          77.9 - 83.0 cm
          83.0 - 85.8 cm
          85.8 - 88.9 cm
          Measured from crotch to floor.
          27.9” - 29.3”
          27.9” - 29.3”
          29.3” - 30.7”
          30.7” - 32.7”
          32.7” - 33.8”
          32.7” - 35.0”



          Geometry
          48 51 54 56 58
          (A) Top Tube Length 467 mm 490 mm 510 mm 538 mm 567 mm
          (B) Seat Tube Length 489 mm 512 mm 538 mm 563 mm 586 mm
          (C) Seat Tube Angle 79.5 ° 79 ° 78.5 ° 78 ° 77.5 °
          (D) Head Tube Length 63 mm 86 mm 109 mm 134 mm 157 mm
          (E) Steering Angle 71.5 ° 71.5 ° 72 ° 72 ° 72 °
          (G) Wheel Base 958 mm 980 mm 990 mm 1016 mm 1042 mm
          (H) Standover Height 733 mm 755 mm 779 mm 803 mm 825 mm
          (I) BB-Drop 72 mm 72 mm 72 mm 72 mm 72 mm
          (K) Fork Offset 50 mm 50 mm 45 mm 45 mm 45 mm
          (L) Stack 473 mm 495 mm 520 mm 544 mm 566 mm
          (M) Reach 378 mm 392 mm 404 mm 421 mm 440 mm
          (O) Crank Length 165 mm 165 mm 170 mm 170 mm 172.5 mm
