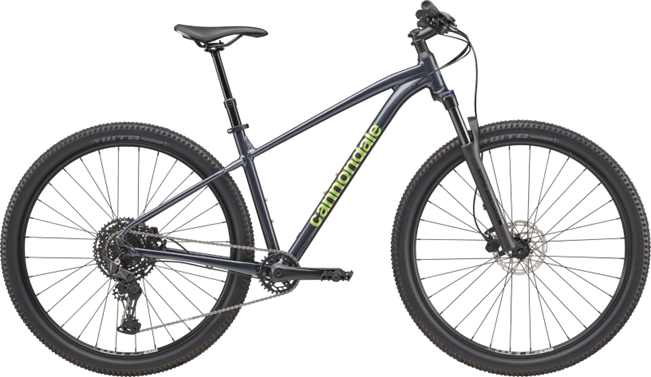

Cannondale Trail 1 - 2025

Time to Level Up!
The Cannondale Trail is your first-class upgrade to next-level mountain biking—engineered for fun by a brand trusted by Champions.

Features
- A lightweight, durable SmartForm C3 Alloy frame
- 29” wheels on the larger sizes, 27.5” wheels on XS and Small for the best blend of fit and speed
- Bump-eating SR Suntour XCM35 Boost fork with 100mm of travel (80mm on XS and Small sizes)
- Shimano CUES U6000 10-speed shifting - wide range gearing with the simplicity of a single front chainring
- A hidden kickstand mount, plus mounts for a rack and fenders, offer true do-it-all versatility

Specifications

• Frame: Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
• Fork: SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29")
• Rims: WTB SX19, 32h
• Hubs: (F) Shimano TC500, 15x110mm / (R) Shimano TC500, 12x142mm
• Spokes: Stainless Steel, 14g
• Tires: WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
• Crank: Prowheel, Charm 30T
• Bottom Bracket: ProWheel, square taper
• Chain: KMC X10, 10-speed
• Rear Cogs: Shimano CUES, 11-48, 10-speed
• Rear Derailleur: Shimano CUES U6000
• Shifters: Shimano CUES U6000, 10-speed
• Handlebar: Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
• Grips: Cannondale
• Stem: Cannondale 4, 6061 Alloy, 31.8, 6°
• Headset: Semi-Integrated, 1-1/8"
• Brakes: Tektro M275 hydraulic disc, 160/160mm rotors
• Saddle: Cannondale Trail
• Seatpost: JD Dropper, internal routing, 31.6, 130mm
